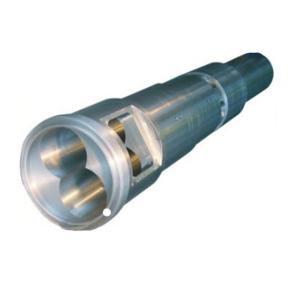

Bimetallic / Nitrided Conical Twin Screw Barrel For Extruder

Name: Bimetallic Nitrided Conical Twin Screw Barrel For Extruder
Brand: BLM-IV-1
Price: 1 USD

Quality Bimetallic / Nitrided Conical Twin Screw Barrel For Extruder wholesale

Brand Name : BLM-IV-1

Place of Origin : Jiangsu, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000 per Month

Delivery Time : 25-30 days subject to the clients' requirement and quantity

Packaging Details : packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.

Place of origin : Jiangsu,China

Material : 316L/X260/W6Mo5Cr4V2 or customized

Spare parts type : spare parts for twin screw exruder

Application : Machinery Repair shops,Food an Beverage Factory

Center distance : 26mm

Screw distance : 30mm

Dimension（LxWxH) : 120x135x115mm

After warranty service : Video technical support,online support

Contact Now

Bimetallic / Nitrided Conical Twin Screw Barrel For Extruder
1. Descriptions

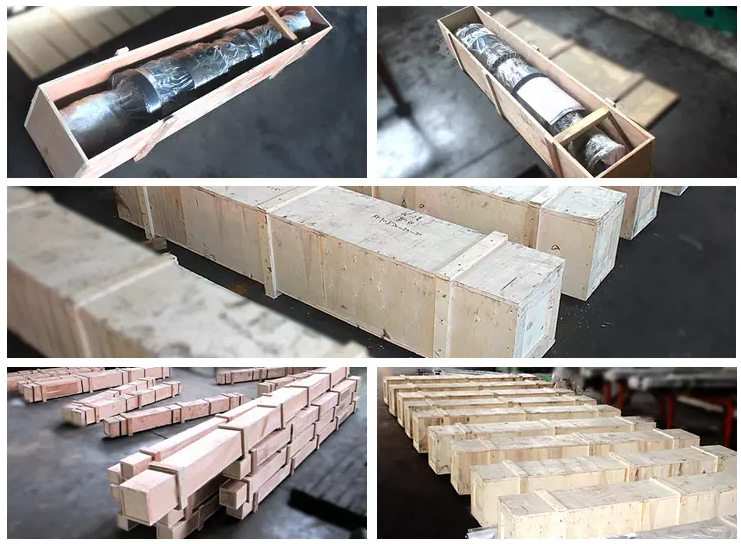

Step 1 - Rust Preventing Oil

Step 2 - Casting Film Wrapped

Step 3 - Polywooden Case

2. Technical Specification

Design Details	Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system Barrel I TYPE:outside is air cooling system II TYPE:out side is copper pipe around cooling system
Accessories	Stop ring+washers to adjust the space between screw and barrel
Technical Specification	Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm
MOQ	1 set(1 pair of screws and 1 piece barrel)
Type	Concial Twin Screw and Barrel

3. Brief Application

Application: PVC

Production output:130kg/h~150kh/h
Lifetime: 20,000 hours

Old order from: West Europe,East Europe,South America,South Africa,Middle

4. Features:

Accrurate size

High capacity design

Wear resisting material

Easy maintenance

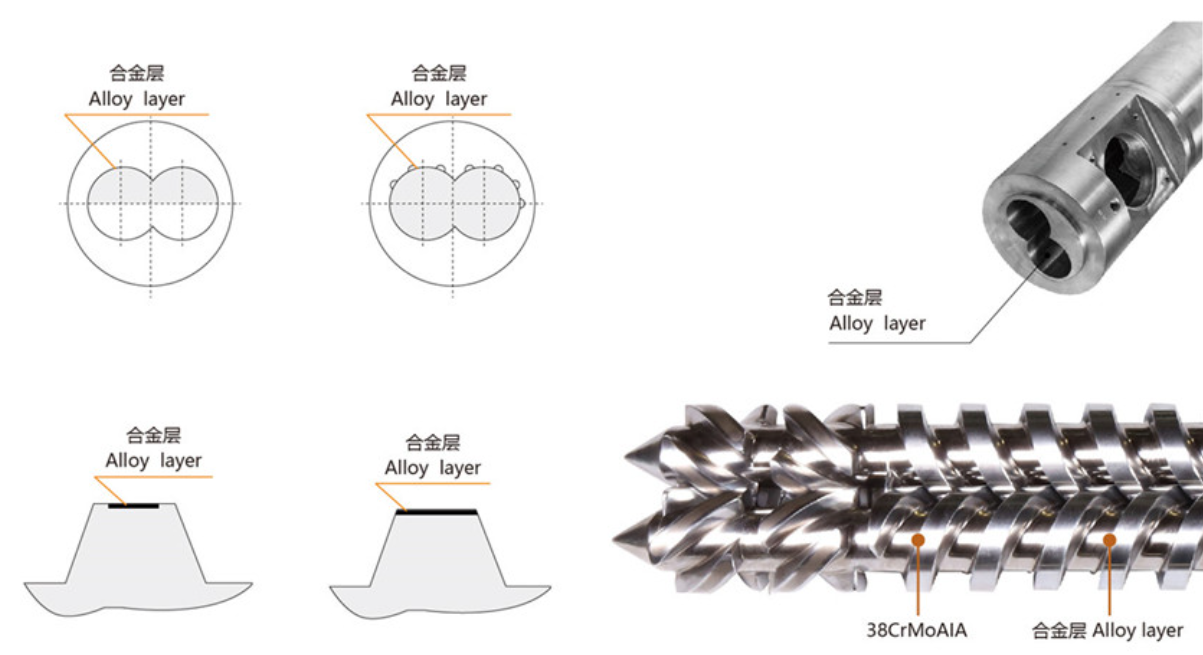

5. Screw&barrel use material

Raw material	The finished product processing requirements
38CrMoAIA, SACM645	Nitriding treatment
Cr12MoV, Cr12,	Alloy steel
38CrMoAIA, SACM645, 40Cr, AISI4140, 42CrMo	Alloy steel
4Cr5MoSiV1,SKD-61,SKD-11	Bimetallic of the inner hole centrifugal casting
GHII3	nature hard after high temperature

Bimetallic / Nitrided Conical Twin Screw Barrel For Extruder

Product Tags:

Bimetallic Conical Twin Screw Barrel

Nitrided Conical Twin Screw Barrel

Extruder Conical Twin Screw Barrel

Bimetallic / Nitrided Conical Twin Screw Barrel For Extruder Images
