High Customized Cylinder Barrel For Co-rotating Parallel Twin Screw Extruder
1. Our machine types:
Co-rotating parallel twin screw pelletizing extruders
Single screw pelletizing extruders
Die face cut (air cooling) pelletizing extruders
Double stage / double degassing recycling extruders
Crushers,mixers,storage tanke,vibrators,granulators,blowers
Extruder spare parts
2 . size :
| Code No | Description | Materials | Alloy Thickness | Application |
| BLM-01 | Ni-Alloy Liner | Ni-Alloy | 5-20mm | Extruder machine |
| BLM-02 | Bimetallic Liner | Steel + Ni Alloy | 2-3mm | Extruder machine |
| BLM-03 | Steel Liner | Steel | 5-20mm | Extruder machine |
3. Screw and barrel barrel screw extruder screw barrel processing:
Raw material - brand - testing - machining - grinding process - antirust process - products - packing - delivery to your hand
4. Customized desgin:
We can satisfy your different material needs :
According to appearance design , closed barrel,open barrel , side feeder barrel , combi barrel
According to the liner , with liner barrel , without liner barrel
According to Material:
For wear application :C liner , Cr26 , Cr12Mov ; W6Mo5Cr4V2
For corrosion application : 38CrMoAl , Hac alloy
| NO | Model | Size WxHxL(mm) | Holder Diameter(mm) | Center Distance D |
| 1 | 20 | 115x105x132 | Φ23 | 18.4 |
| 2 | 30 | 135x115x120 | Φ30.6 | 26 |
| 3 | 35 | 140x120x140 | Φ30 | 30 |
| 4 | 36 | 160x140x150 | Φ36 | 30 |
| 5 | 40 | 175x145x160 | Φ41.6 | 34.5 |
| 6 | 50 | 190x150x190 | Φ51 | 42 |
| 7 | 52 | 200x155x210 | Φ52 | 43 |
| 8 | 53 | 210x160x220 | Φ53.3 | 48 |
| 9 | 58 | 220x175x240 | Φ58 | 48 |
| 10 | 60 | 210x170x240 | Φ60 | 52 |
| 11 | 65 | 210x170x240 | Φ63 | 52 |
Product Tags:
|
|

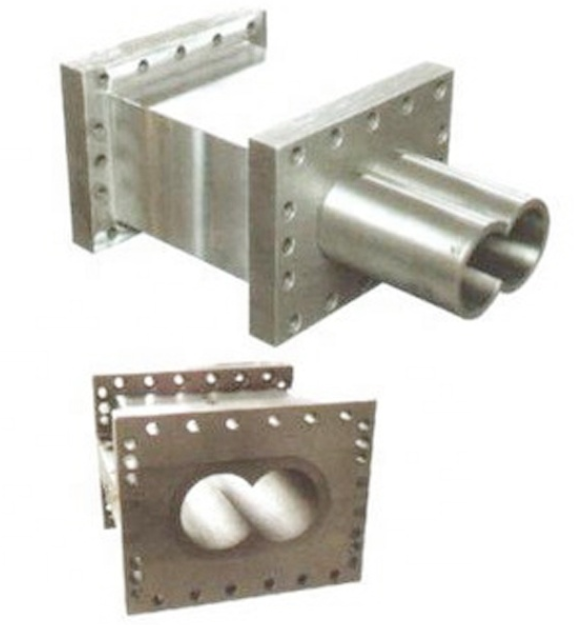

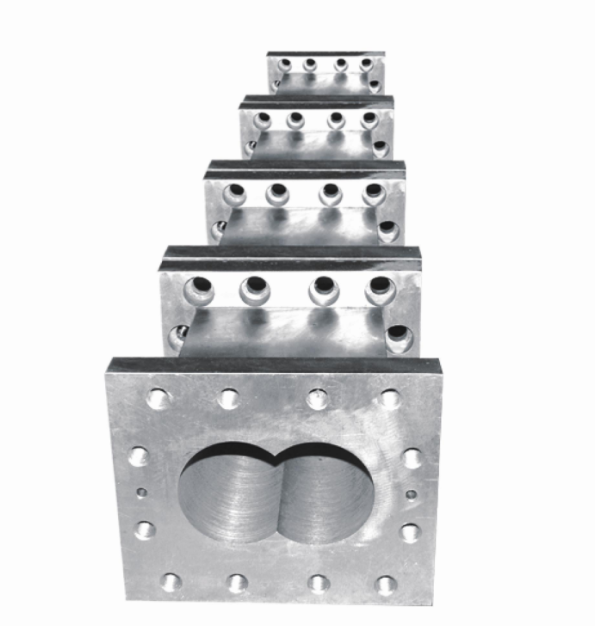

Customized Cylinder Barrel For Co Rotating Parallel Twin Screw Extruder Images
|
